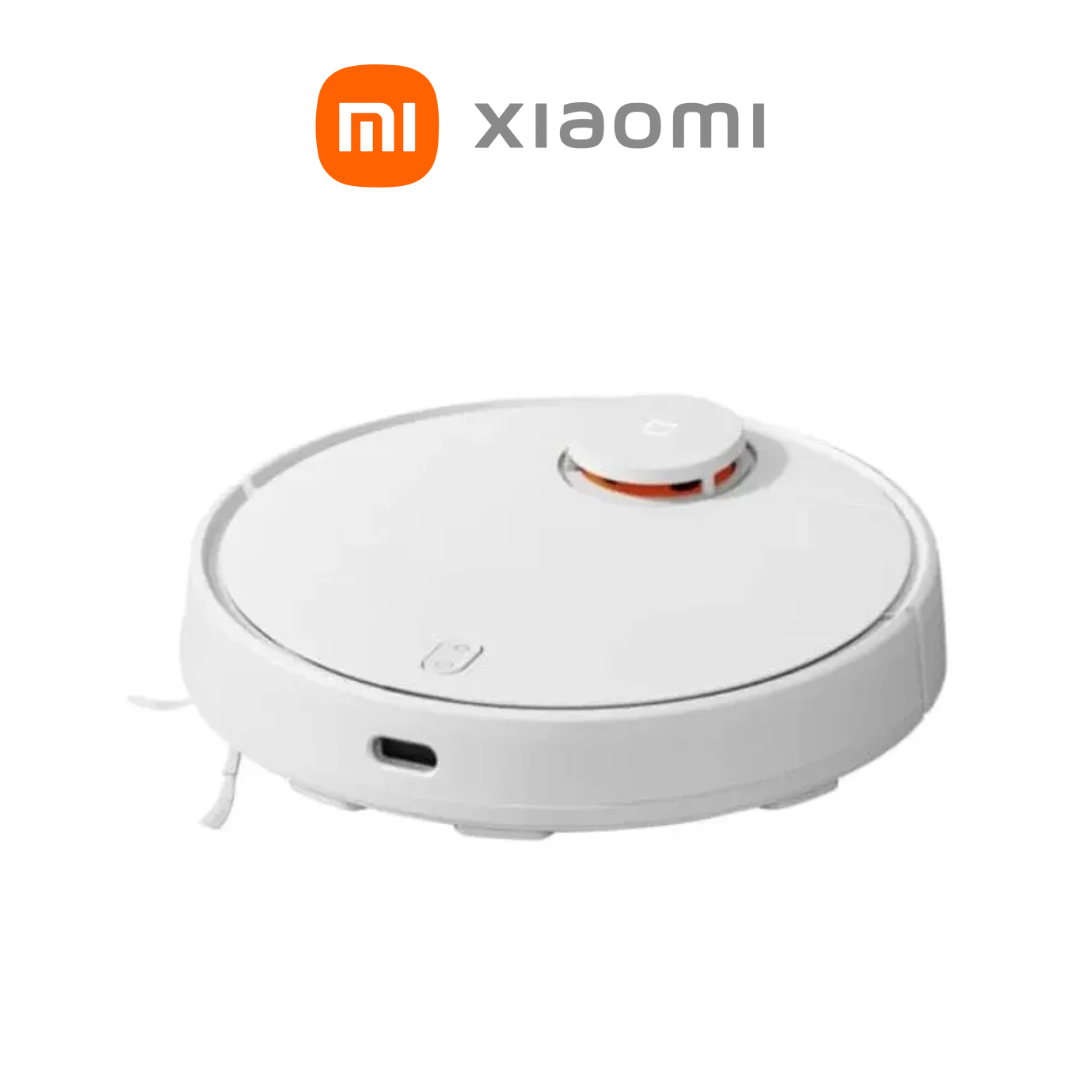

XiaoMi Robot Vacuum Mop S10

Share :

XiaoMi Robot Vacuum Mop S10


Product Specifications :

  • Model number - B106GL
  • Main unit dimensions - 350x94.5mm
  • Rated power - 45W
  • Rated voltage - 14.8V⎓
  • Charging voltage - 20V⎓
  • Net weight - 4.8kg


Collision sensor *2

  • Detect when the infrared signal is blocked to determine whether there are obstacles ahead.


Cliff sensor *4

  • The strength of the received infrared signal is used to judge height of the drop and prevent the robot from falling.
  • Effective detection range: 1–10cm


Speed sensor *2

  • Primarily designed to measure the wheel speed.
  • No distance measurement function


Induction sensor *1

  • Detect the presence of functional components (such as the water tank) through magnetic field induction between the sensor and a magnet.
  • No distance measurement function


Gyroscope (IMU) *1

  • Detect the position of the robot via a 3-axis gyro sensor.
  • No distance measurement function


Radar sensor *1

  • Use radar distance measurements to judge whether there are obstacles ahead and how far away they are, and assist the robot as it plans its path.
  • Specified range: approx. 0.16m–8m


Recharge sensor *1

  • Send and receive infrared signals to align the robot with the charging dock.
  • Effective range: approx. 4m


What's in the box :

  • Main unit x1
  • Main brush x1(Pre-installed)
  • 2-in-1 water tank and dust container x1(Can be used in either Vacuum or Mop mode)
  • Side brush x1
  • Brush cover x1(Pre-installed)
  • Pad x1(Pre-installed on the mop frame)
  • Mop frame x1
  • Power adapter x1
  • Charging dock x1
  • Cleaning brush x1(Open lid to access)
  • User manual x1
